Diagnostics Scanner for Truck & Bus

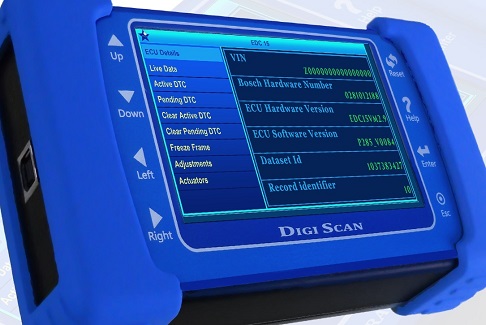

Digiscan Truck Scanner Description

Increased complexity of electronics and sensors in the commercial vehicles like truck and buses Digiscan Diagnostic Scanner has been introduced which help th euser to identify and resolve the problem. Digiscan tool is customeized to OE specific requirements and has been developed in complete confidentiality with prorietary controls governed by OEMS.

Digiscan Core Feature

  • Handheld with user friendly firmware.
  • Communicates with multiple ECU's.
  • Multiple procols & automatic protocol selection.
  • Inbuilt power supply no external charging required.
  • Multiple parameter visibility & compare feature.
  • data logging enebled.
  • DTC with cause and remedial action.
  • Adjust required parameter.
  • Online firmware update.
  • Offline GUI software for logged data analysis.
  • No compulsion for software update every year.

    • Digiscan Hardware Features

  • External communication via K-Line / CAN.
  • CAN communication via J1939Protocols / UDS.
  • Power Supply range 8 V to 32 V.
  • 32 bit, 120 MHz. ARM Cortex series processor
  • Memory 2 GB inbuilt.
  • Online data logger.
  • Inbuilt 9 V power supply.
  • TFT 4.4" display.
  • Touch Pad.
  • J1962M to DB9F, OBD Cable.
  • Uploading the data to PC via USB 3.0
  • EMI/EMC protection enabled.

    • Digiscan Software features

  • Software selectbale options for Bosch Diesel - EDC 15 (12 V), Bosch Diesel EDC 16 (24 V) Bosch Diesel EDC 17 (12 V & 24 V) CNG-AFS, CNG Delphi, Body Control ECU, BS IV, OBD II.
  • Automatic Protocol (CAN KWP) Selection.
  • Display real time data.
  • Adjust ECU parameters.
  • Set Vehicle speed.
  • Write injectyor code IMA.
  • Test actuator.
  • Read Erase Diagnostic trouble codes.
  • Environmental condition.
  • Freeze frame data.
  • Read & write vehicle identification number (VIN).
  • Password protection for user selectable parameters.
  • saving option enabled.
  • Online update of firmware.

    • Vehicle Covered:

  • Eicher Motors, Tata Motors, SML Isuzu, Ashok Leyland, Bharat Benz, Force Motors.

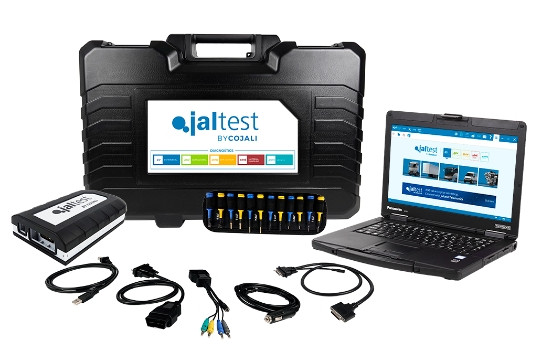

    • JALTEST INDIA COMMERCIAL VEHICLE DIAGNOSTIC Scanner











    Jaltest, one scanner for all comercial vehicles

    The Jaltest diagnosis tool is the appropriate device to perform diagnosis on your truck. Multibrand and multisystem diagnostics with a wide coverage on the different electronic systems installed on Commercial Vehicles.

    Jaltest India salient Feature

  • Auto detection of system and error codes,
  • Vehicle trouble shooting by symptoms guide,
  • Interactive wiring diagrams with integrated technical information and sensor data,
  • Mechanical data and component location information,
  • Module re-programming,
  • OEM technical service bulletins,
  • Forced DPF regeneration,
  • Adblue metering and leak tests,
  • Clutch and transmission calibration,
  • Injector re-coding,
  • Truck/trailer braking system (EBS) file configuration through to repair validation test,
  • Foreward looking/lane departure camera calibration.

    • Jaltest India Special functions

  • Information on connectors: Jaltest informs you about which connector to use and its location on the vehicle,
  • Diagnosis: Recording and description of the errors registered on each of the control units. AUTOMATIC DETECTION OF THE COMPLETE ERRORS LIST ON THE SYSTEMS INTEGRATED ON THE VEHICLE,
  • Actuation of Components: Possibility of interacting and sending orders on the different systems using Jaltest: such as fan activation, cylinders cutout, compression test and operational checking of the different mechanisms, etc.,
  • Values Measuring: Measuring and Displaying of up to 8 values at the same time. Information on the ranges of reference values,
  • Parameters: Configuration of the different parameters,
  • System Data: Information on the system configuration and ECU data,
  • Errors Clearance: Errors clearance on the control unit and turning off of failure lamps.

    • A single hardware for your entire fleet

    A robust and reliable hardware that supports the different communication protocols such as OBD, OBDII, J1939, J1708, EURO IV, EURO V. IT SUPPORTS THE RP1210 PROTOCOL.

    Truck

  • Ashok Leyland
  • Mercedes-Benz
  • Bharat Benz
  • Mitsubishi Fuso
  • Eicher
  • Scania
  • Isuzu
  • SML Isuzu
  • Mahindra
  • Tata
  • Man
  • Valvo

    • Bus

  • Ashok Leyland
  • Mercedes-Benz
  • Bharat Benz
  • Force Motors
  • Eicher
  • Scania
  • Isuzu
  • SML Isuzu
  • Mahindra
  • Tata
  • Man
  • Valvo

    • LCV

  • Ashok Leyland
  • Mazda
  • Force Motors
  • Mitsubishi
  • Ford
  • Nissan
  • Foton
  • Piaggio
  • Isuzu
  • Tata
  • Mahindra
  • Toyota

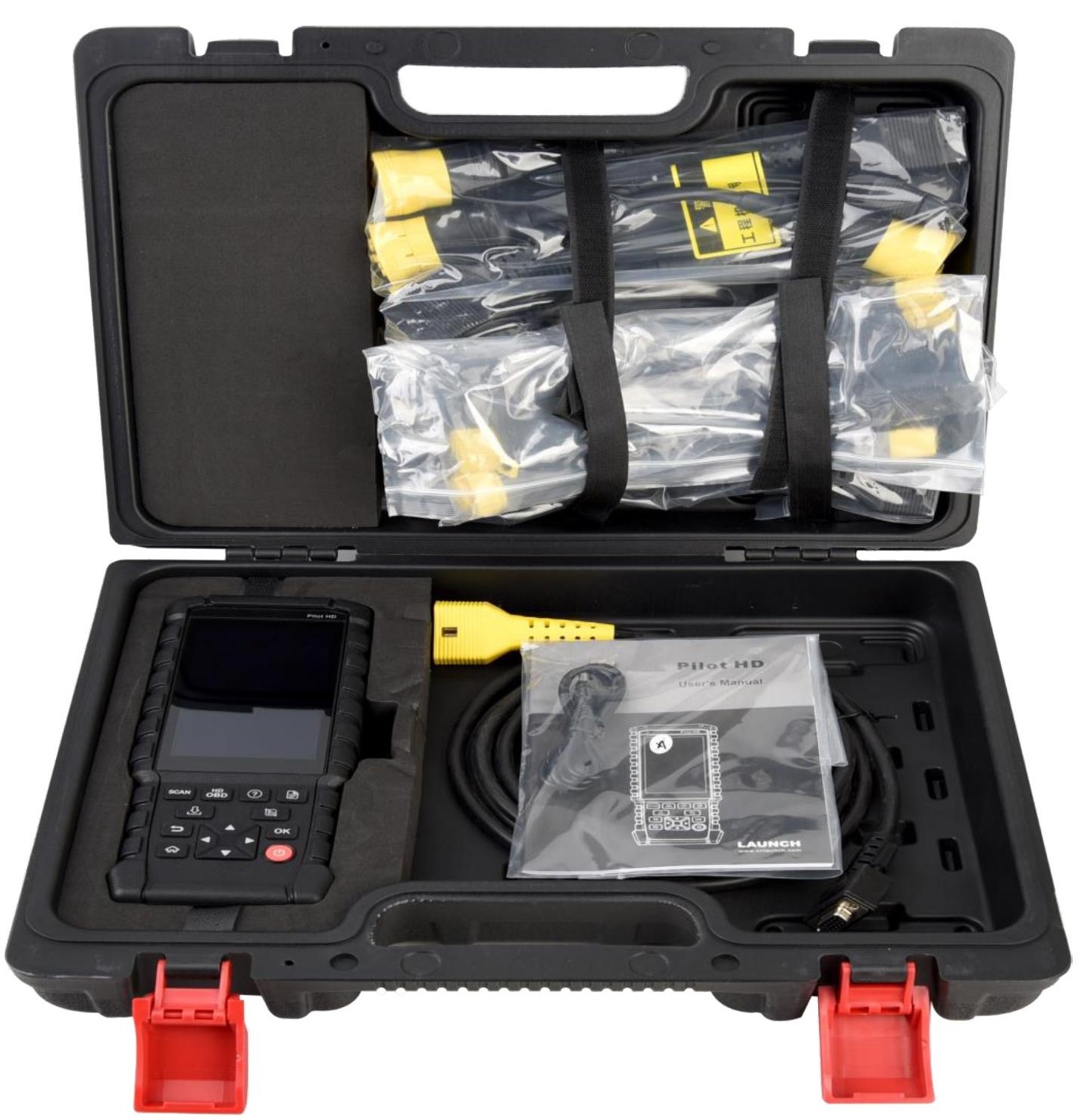

    • Launch Pilot HD (24V)

    Launch Pilot HD (24V) Description

    Launch Pilot HD Scan tool is specially created for truck technicians for commercial vehicles in India.

    Launch Pilot HD carries on Launch advantage on truck vehicle diagnostic technology, usch as abundant special functions, wide coverage, powerful test functions, professional test reports etc. Also it adds the auto detect function to access diagnosis in a short time. More ever it supports test report sharing by email and software updating via internet and much more easily and timely.

    Diagnostics Features

  • Supports Automatic VIN identifications.
  • supports diagnostics feedback.
  • Supports OBD full functions diagnostics.
  • supports one click update.
  • Cover morethan 40 main stream vehicles.
  • Read DTC code clear DTC codes.
  • Read Data stream of vehicle full systems.
  • Automatic generations of dignostic reports and sharing via email.


    • Specifications

  • Display 5 inch 720p touch screen.
  • OBD Input Voltage 12~24 V.
  • Dimesions 248mm x93mmx36mm.


    • Launch Pilot HD Vehicle Coverage

  • Ashok Leyland
  • Tata
  • Valvo
  • Isuzu
  • SML Isuzu
  • Maxx Force
  • Scania
  • Man
  • Benz

  • Cummins
  • Delphi
  • Denso
  • Bosch
  • Wabco ABS
  • Caterpiller
  • Hino
  • Paccar
  • and many more
