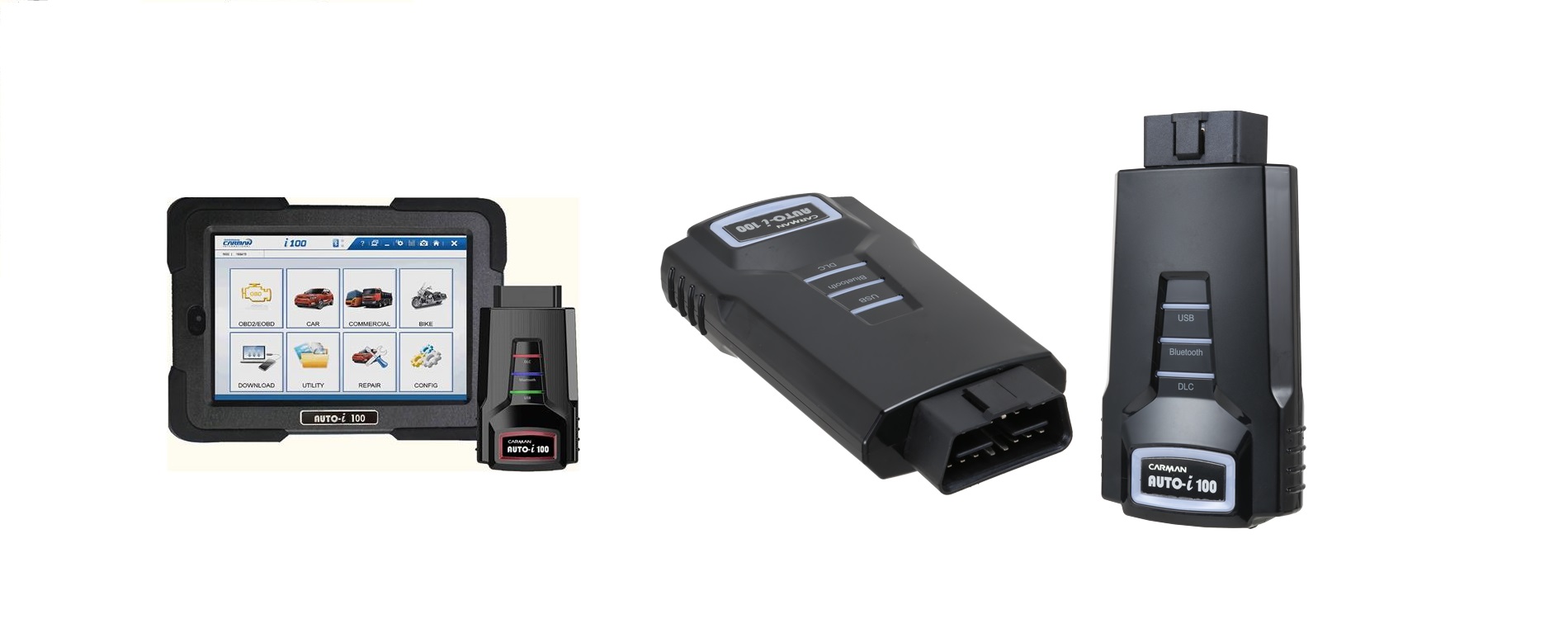

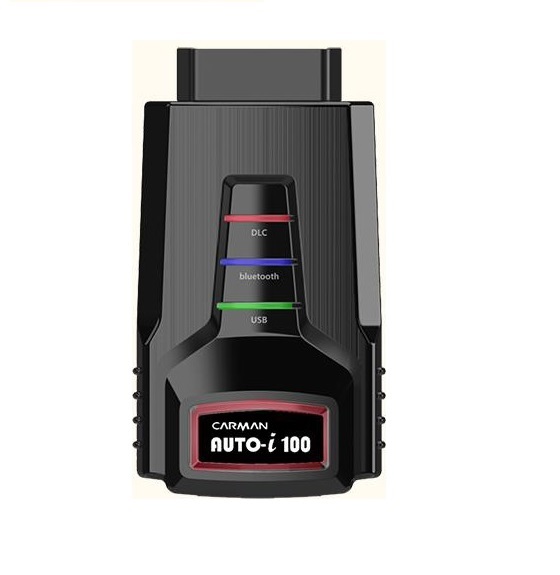

Carman Auto i 100 Main Specifications
Protocol: ISO 9141(ISO 9142-2), ISO 14230-2(KWP 2000), ISO 15765-4, SAE-J1850 VPW, SAE-J1850 PWM, Dual & Single
wire CAN, K/L-Line High Speed Serial, Flashing Code, Byte Protocol, Honda Diag-H Protocol, KWPT1281, TP2.0, TP1.6, J2610(Chrysler SCI)
Operating system: Windows XP, Vista, 7, 8 and 10.
Diagnosis processor: Cortex M3 120Mhz
Operating voltage: DC 7~35V
Connection terminal: Bluetooth 2.0 (For wireless diagnosis) USB 2.0 (For wire diagnosis and update) Serial (For TPMS reader)
Operating temperature: 0~45°C, 32~113°F
Storage temperature: -20~70°C, -4~158°F
RF standard: 2.4GHz, F1D/G1D, GFSK/8PSK, -10~50°C 95%/14~122°C 95%, DC 5V(USB)
Bluetooth wireless diagnosis
It’s easy to make a diagnosis by using Bluetooth.
Incredible vehicle coverage
It’s possible to diagnose all vehicles at a reasonable price.
Highest speed
It’s possible to make a diagnosis rapidly by using a latest CPU.
100% communication protocol
All kinds of the communication protocols in existence are supported.
Smart scanning
It’s easy and fast to find the cause of the problem with the auto search system.
DTC reading and erasing
It’s possible to read and erase all DTCs with a single click.
Outstanding graph function
It’s possible to check all graphs of the sensor data at the same time.
Remote control system
Remote control can be possible by Teamviewer, which is built in the software.
TPMS support
Because of the separable TPMS device, this scanner is convenient to use.
